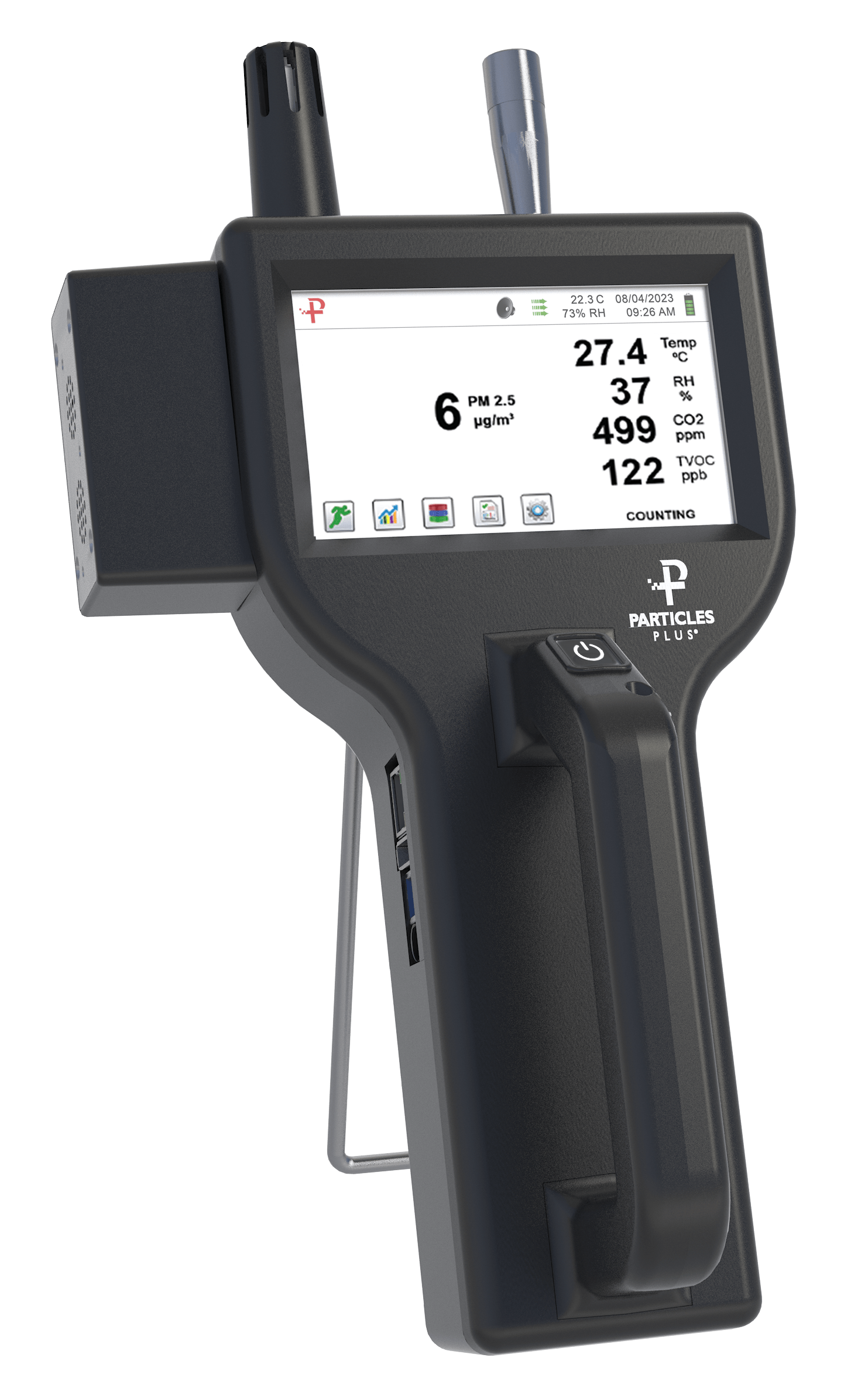

Particles Plus 8301 AQM2

PM1.0, PM2.5, PM4, PM10, CO2, Temperature, RH, and optional TVOC

Particles Plus 8301-AQM Air Quality Monitors

£4,595.00 excl. tax | £5,514.00 incl. tax

The Particles Plus® 8301-AQM1 and 8301-AQM2 Handheld Particle Counters are designed for indoor air quality (IAQ), industrial hygiene, academic research and health & safety applications. Its simple-to-use, feature-rich design enables dynamic environmental monitoring and versatile data reporting across multiple industries.

The 8301-AQMs measure particles from 0.3 to 25 μm in six user-selectable channels at a flow rate of 0.1 CFM (2.83 LPM). They offer data reporting in standard cleanroom formats or by mass concentration in μg/m³, with density and refractive index corrections. These user-friendly instruments display up to six particle size channels, temperature, relative humidity, and CO2 (AQM1) or CO2 + TVOC (AQM2).

With unique features like Particles/Second and the Real-Time Meter, the 8301-AQMs enables efficient, on-the-go particle investigations across nearly any environment. The instruments can also operate as remote particle counters, leveraging intelligent battery and power conservation modes to achieve up to 100 hours of battery life.

  • PM1.0, PM2.5, PM4.0, PM10, Mass concentration in μg/m³
  • CO2 and optional TVOC air quality metrics
  • Up to 1,000 locations 20 characters long

somdn_product_page
SKU: NPL-HH-8301-AQM Category:

Description

The Particles Plus® 8301-AQM1 and 8301-AQM2 Handheld Particle Counters are designed for indoor air quality (IAQ), industrial hygiene, academic research and health & safety applications. Its simple-to-use, feature-rich design enables dynamic environmental monitoring and versatile data reporting across multiple industries.

The 8301-AQMs measure particles from 0.3 to 25 μm in six user-selectable channels at a flow rate of 0.1 CFM (2.83 LPM). They offer data reporting in standard cleanroom formats or by mass concentration in μg/m³, with density and refractive index corrections. These user-friendly instruments display up to six particle size channels, temperature, relative humidity, and CO2 (AQM1) or CO2 + TVOC (AQM2).

With unique features like Particles/Second and the Real-Time Meter, the 8301-AQMs enables efficient, on-the-go particle investigations across nearly any environment. The instruments can also operate as remote particle counters, leveraging intelligent battery and power conservation modes to achieve up to 100 hours of battery life.

  • PM1.0, PM2.5, PM4.0, PM10, Mass concentration in μg/m³
  • CO2 and optional TVOC air quality metrics
  • Up to 1,000 locations 20 characters long

Measurements

Size Channels (default) 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm
Size Range 0.3 to 25 μm
Count Modes Particles/second; Real-Time Meter; cumulative/differential count/m³ and count/ft³; mass concentration μg/m³
Count Alarms 1 to 9,999,999 counts
Sample Time 1 second to 99 hours
Environmental CO2 (AQM1 & 2) NDIR-CO2 sensor (0-5000 ppm ±1%, resolution 1 ppm, response rate 20 seconds)
Environmental T/RH (AQM1 & 2) Temperature (32-122°F, ±1°F / 0-50°C, ±0.5°C) and relative humidity probe (15-90% RH, ±2%)
Environmental TVOC (AQM2) TVOC sensor (5 ppb – 50 ppm ±1.5%, response rate <3 seconds)

Applications

IAQ Indoor air quality
Health & Safety investigations
Industrial Hygiene
COSHH Assessments
Academic Research
Exportable Data Reports ISO 14644-1, EU GMP Annex 1, FS 209E
Recipes 50 user-configurable recipes
Sample Locations Up to 1,000 locations 20 characters long

Specifications

Aerosol Concentration Range 0.01 to 20,000 μg/m³
Concentration Limits 15,000,000 particles/ft³ @ 10% coincidence (per ISO 21501-4)
30,000,000 particles/ft³ @ 10% coincidence (as tested and validated)
Flow rate / Accuracy 0.1 CFM (2.83 LPM)
Battery Removable Li-ion >10 hours continuous operation
Battery Sampling Over 10 hours continuous sampling on a single charge
Light Source Long life laser diode
Resolution 0.00003 μg/m³
Counting Efficiency 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS B 9921
Zero Count <1 count / 60 minutes (<1 particles / 6ft³).  No fault count subtraction. No appreciable drift.
Calibration NIST traceable
Display 4.3″ (10.9 cm) WQVGA (480×272) colour touch screen
Vacuum Source Internal pump with automatic flow control
Filtered Exhaust Internal HEPA filter
Audible Alarm Adjustable Integrated Alarm
Communication Modes Ethernet, USB, RS485, RS232, and optional 802.11b/g wireless
Alarm Types Alarms for particle counts (any size channel), sensor failure, environmental sensors, and flow rate
Applicable Standards ISO 21501-4 , JIS B9921
Instrument Calibration Recommended minimum once per year. Gases, temperature and humidity sensors field calibratable.
External Surface Lightweight high-impact injection molded plastic enclosure
Dimensions (L x W x H) 6.33 x 4.25 x 12.26 in (16.1 x 10.8 x 31.1 cm) includes handle and does not include probes
Weight 2.5 lb (1.1 kg)
Accessories User manual + Instrument Management Software (IMS) on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, battery, USB cable, and power supply
Data Storage Securely stores up to 45,000 samples with particle counts, environmental data, locations, and timestamps
Power 110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions 41-104ºF (5-40ºC) / 20% to 95% non-condensing
Storage Conditions 32-122ºF (0-50ºC) / Up to 98% non-condensing
Warranty 2 year Limited Warranty (Extended and Lifetime warranties available)

What's in the box

8301-AQM Handheld Particle Counter
User manual
Instrument Management Software (IMS) on USB flash drive
Isokinetic probe
Temperature / Relative Humidity Sensor
Zero-count filter
Battery
USB cable
Power Supply
