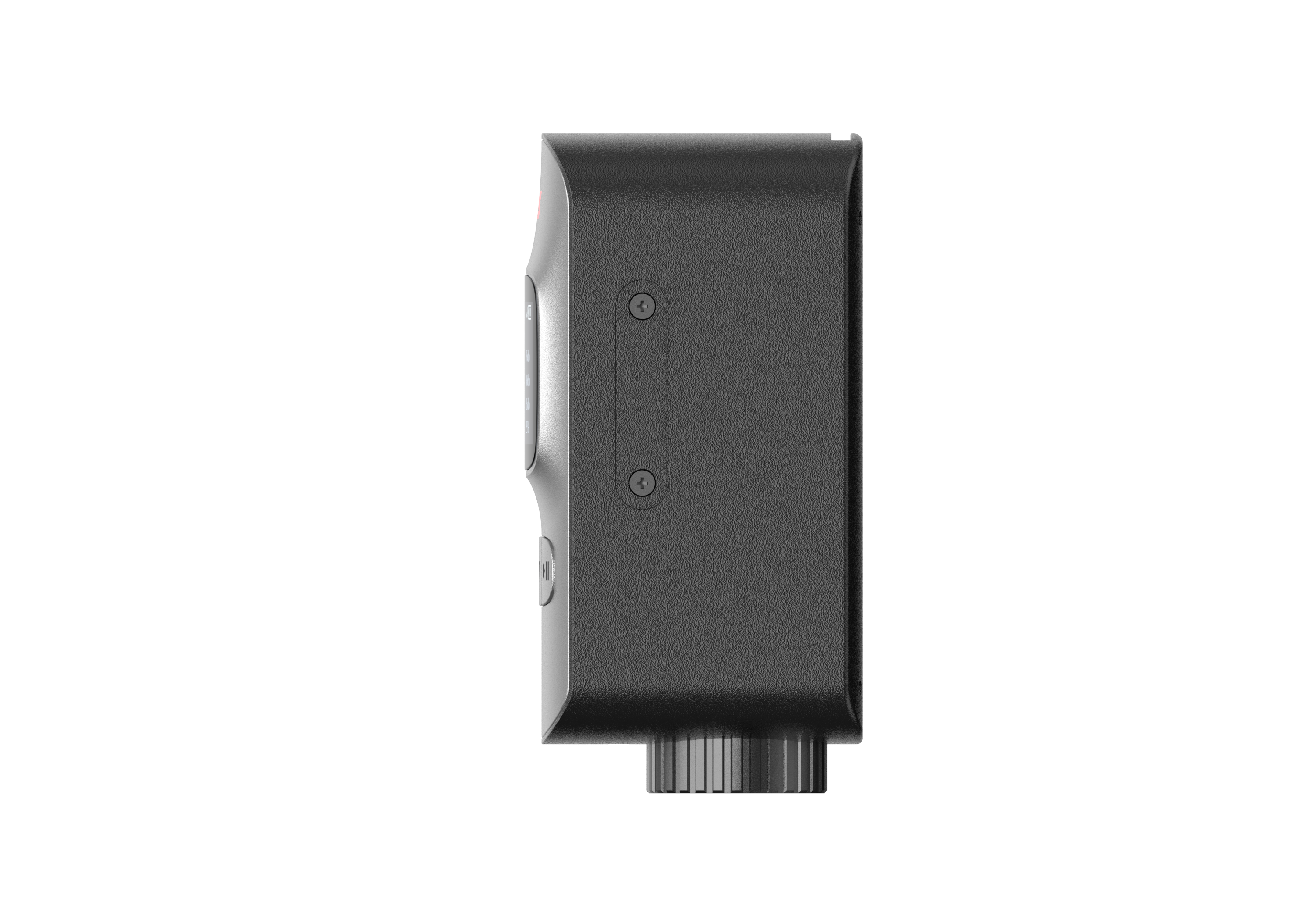

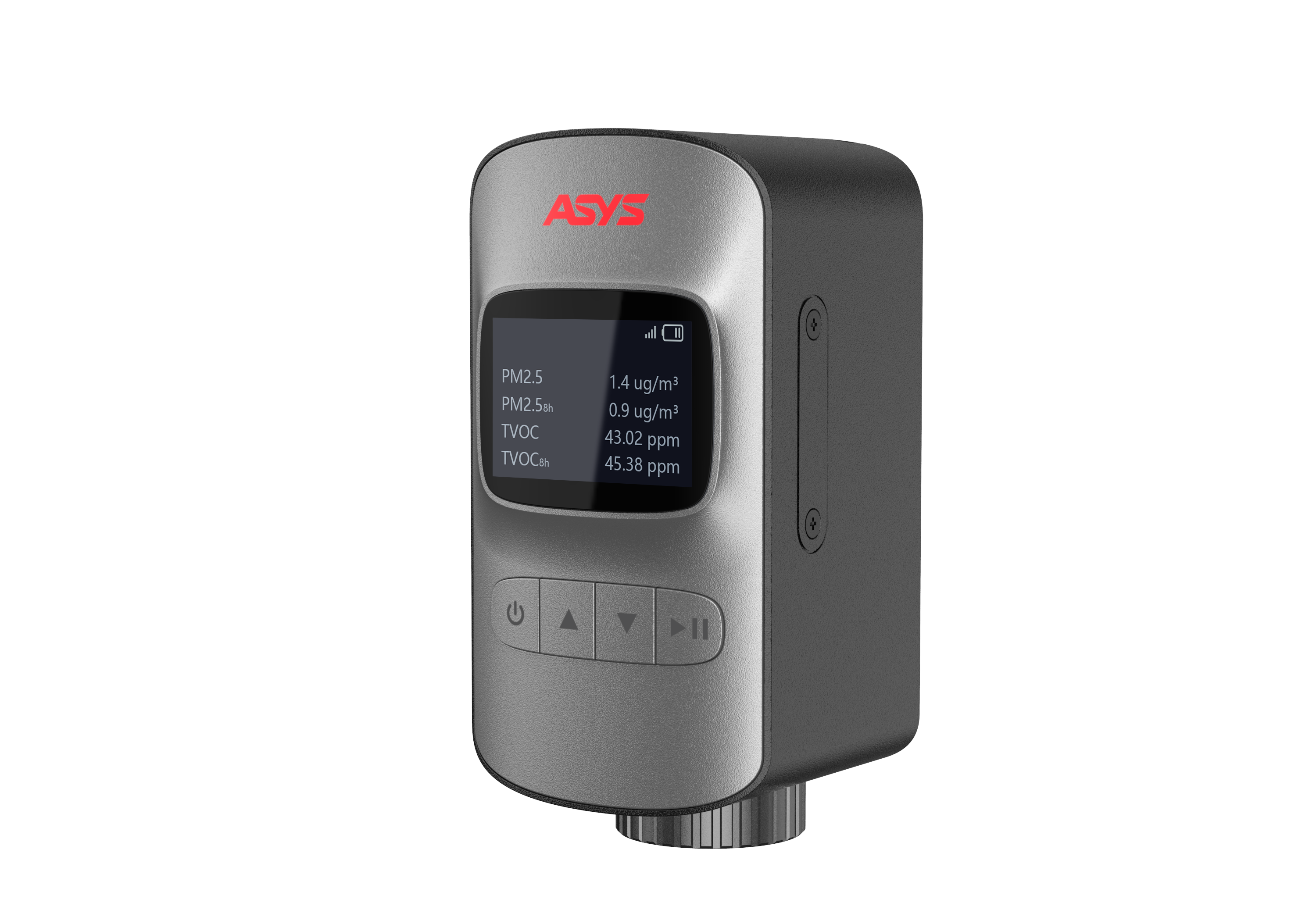

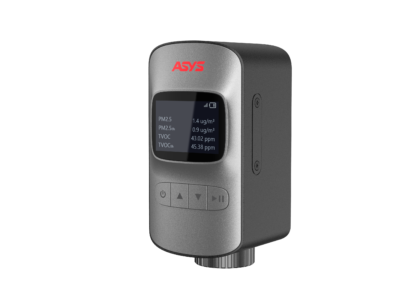

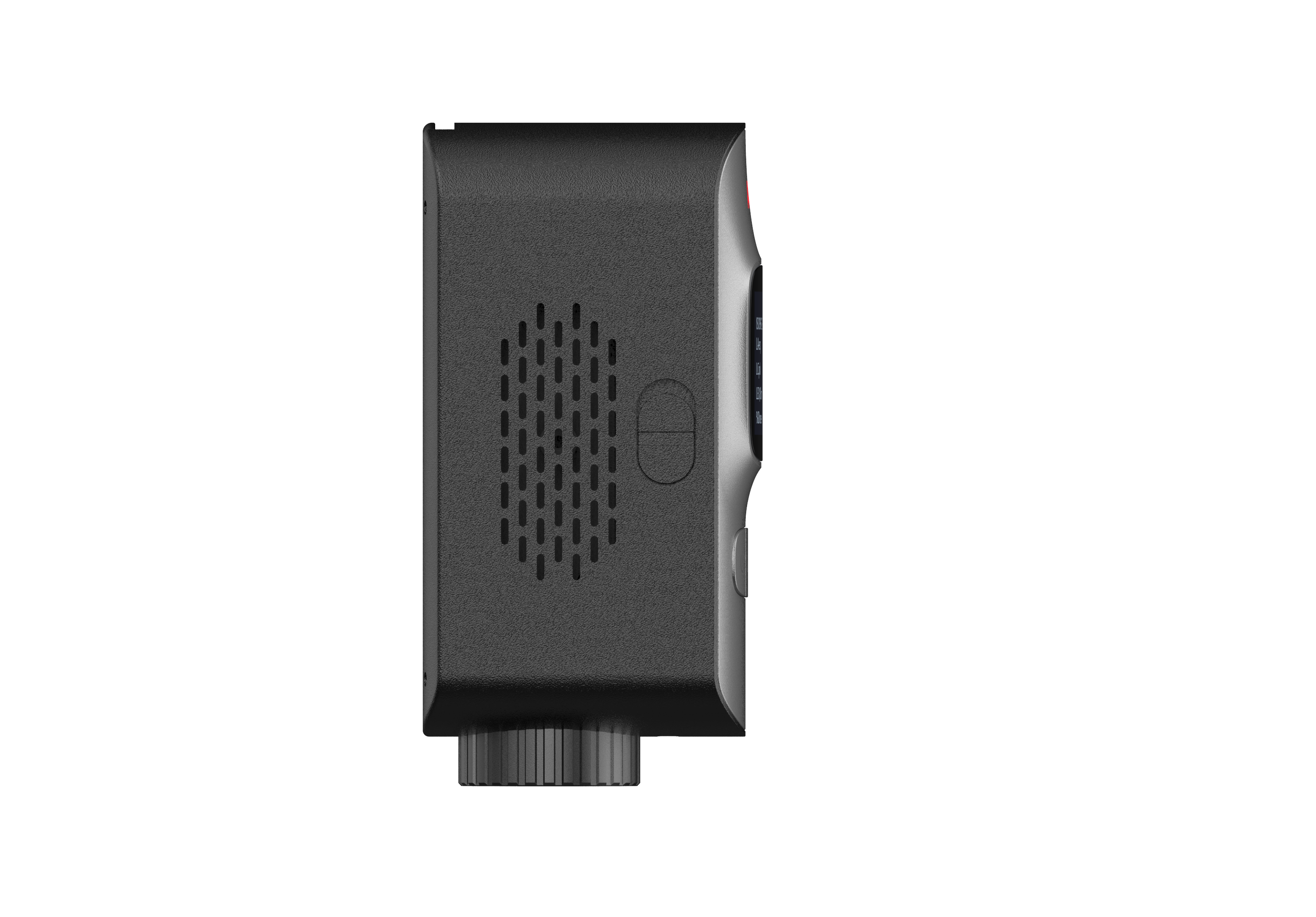

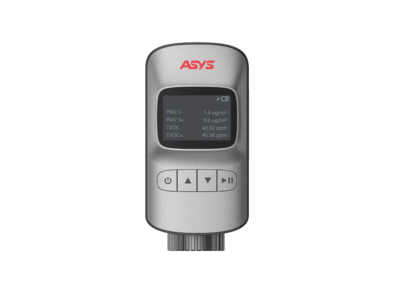

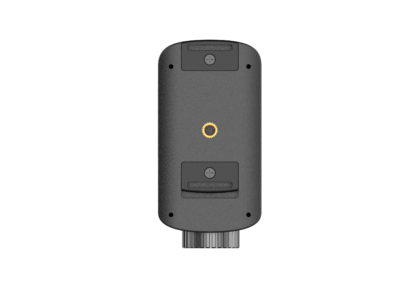

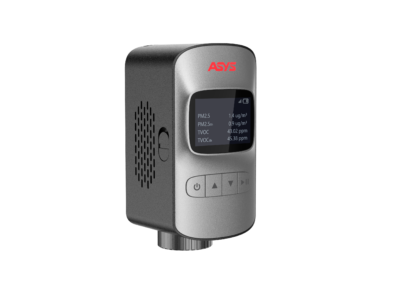

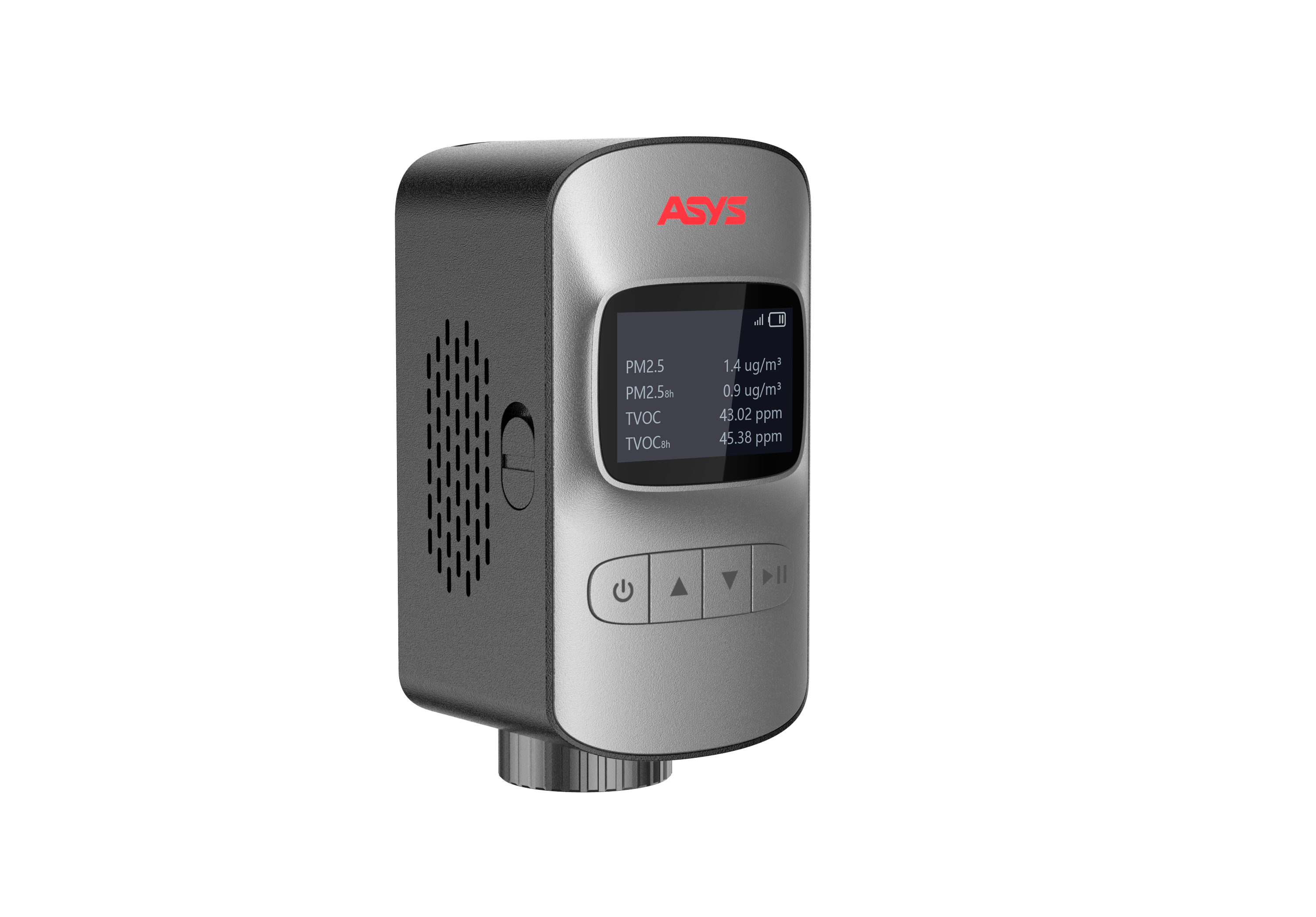

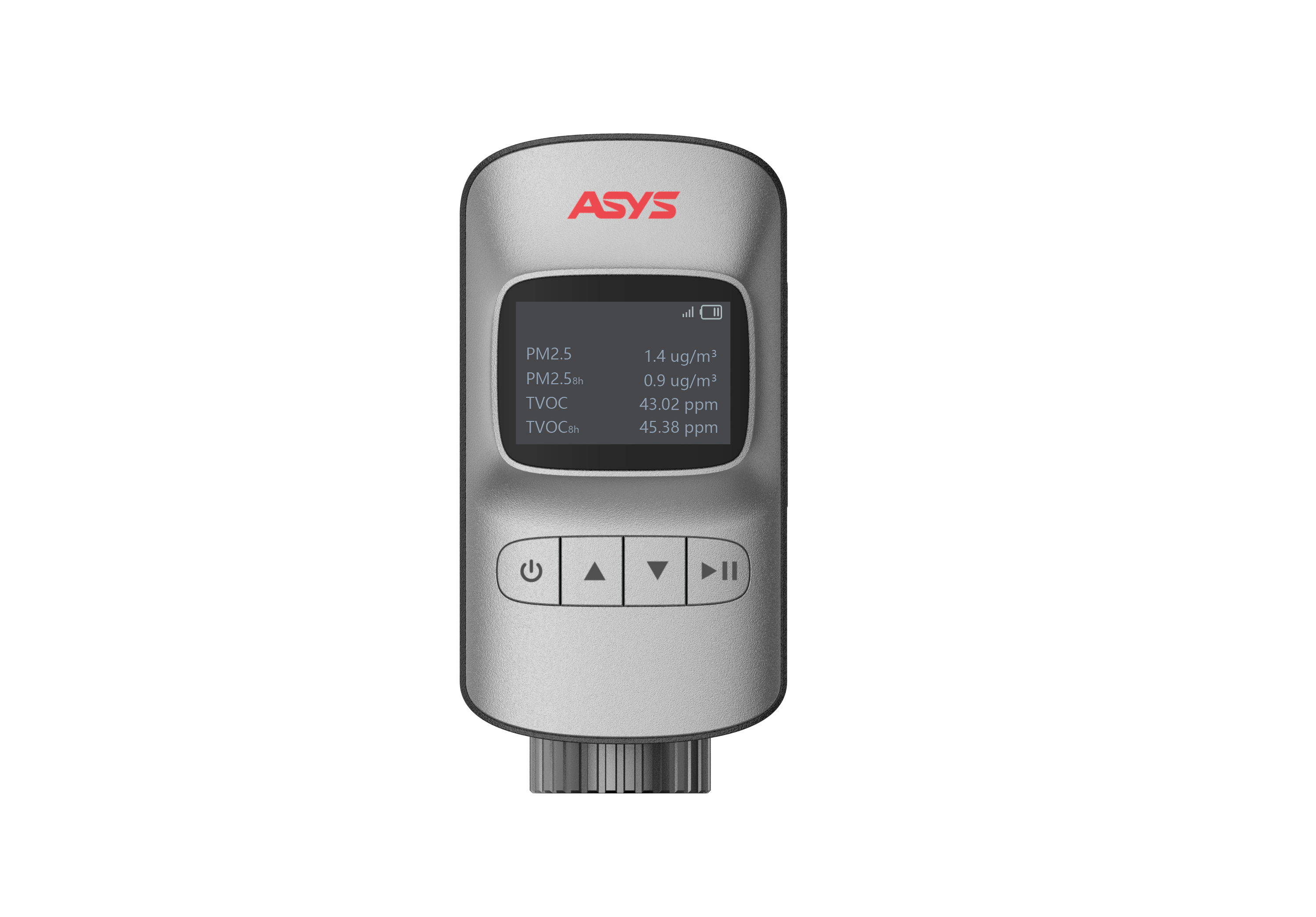

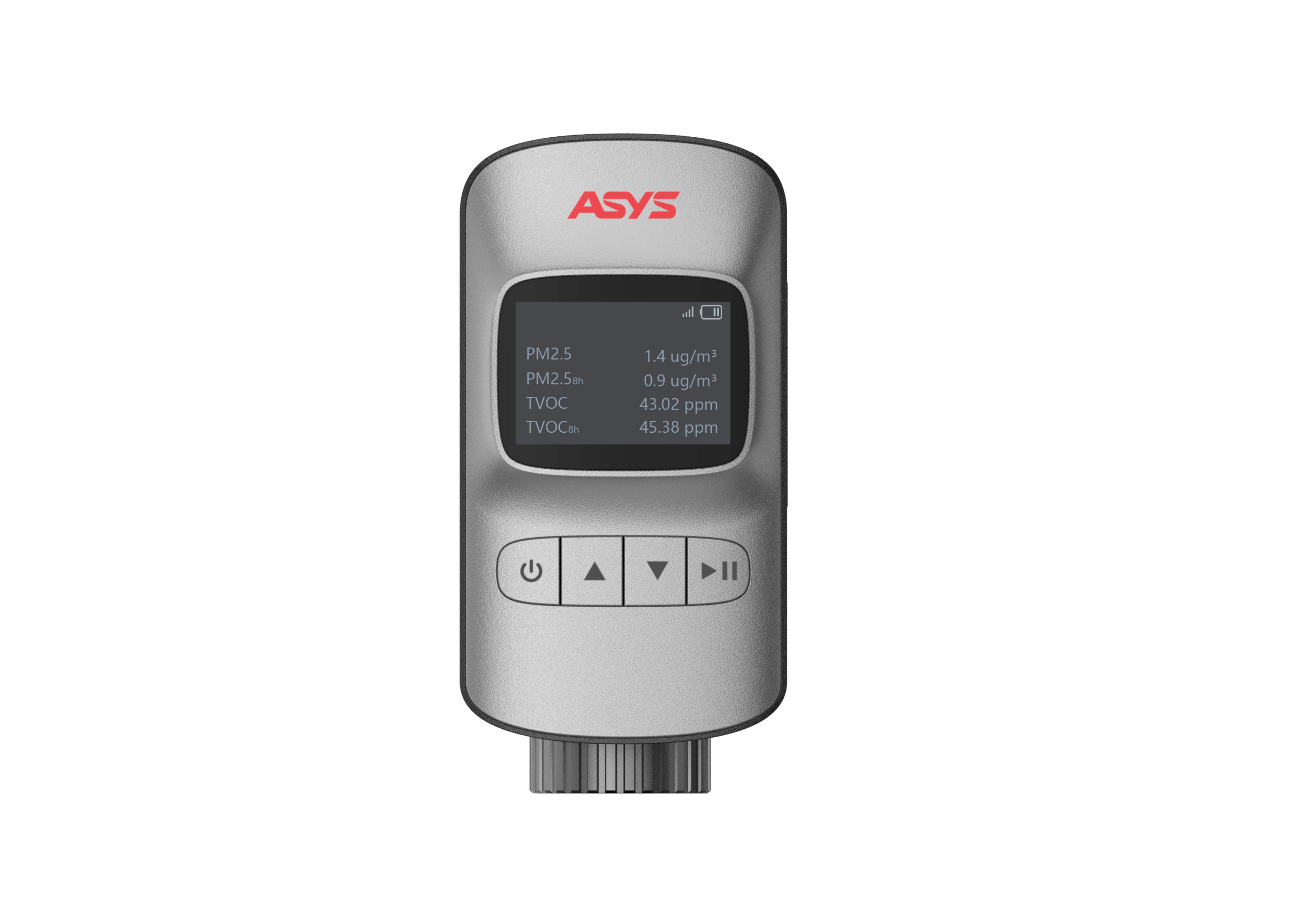

Personal Dust and Vapour Exposure Monitor

ASYS dBELL 110

£2,644.00 excl. tax | £3,172.80 incl. tax

Personal Air Quality Monitor: For real-time monitoring of Airborne particulates and TVOC.

Handheld Air Quality Meter: For conducting spot checks for PM and TVOC’s around the workplace environment.

Remote Air Quality Monitor: Use with the dBELL 100 system for longer term studies on time-variable or intermittently airborne hazard processes.

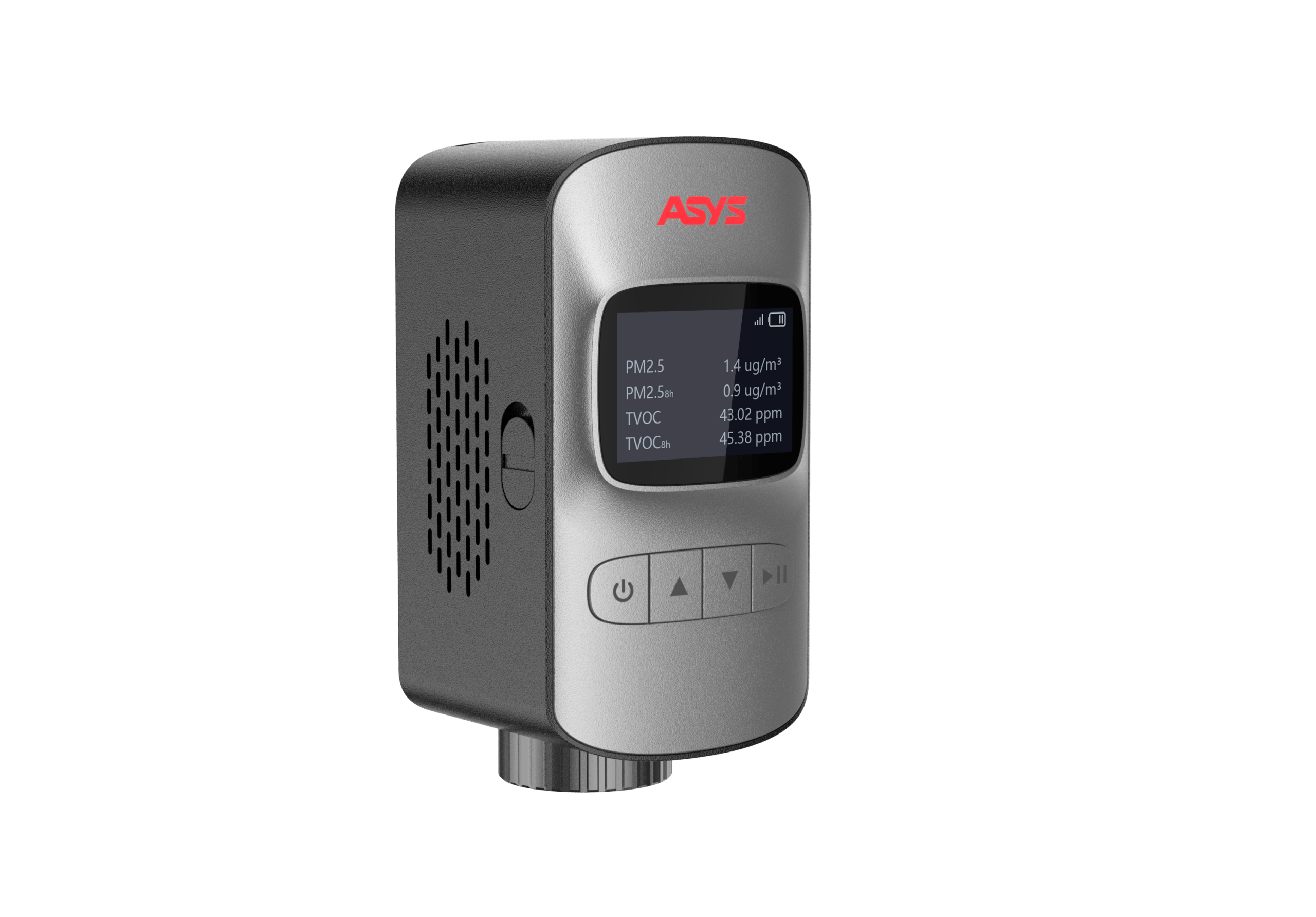

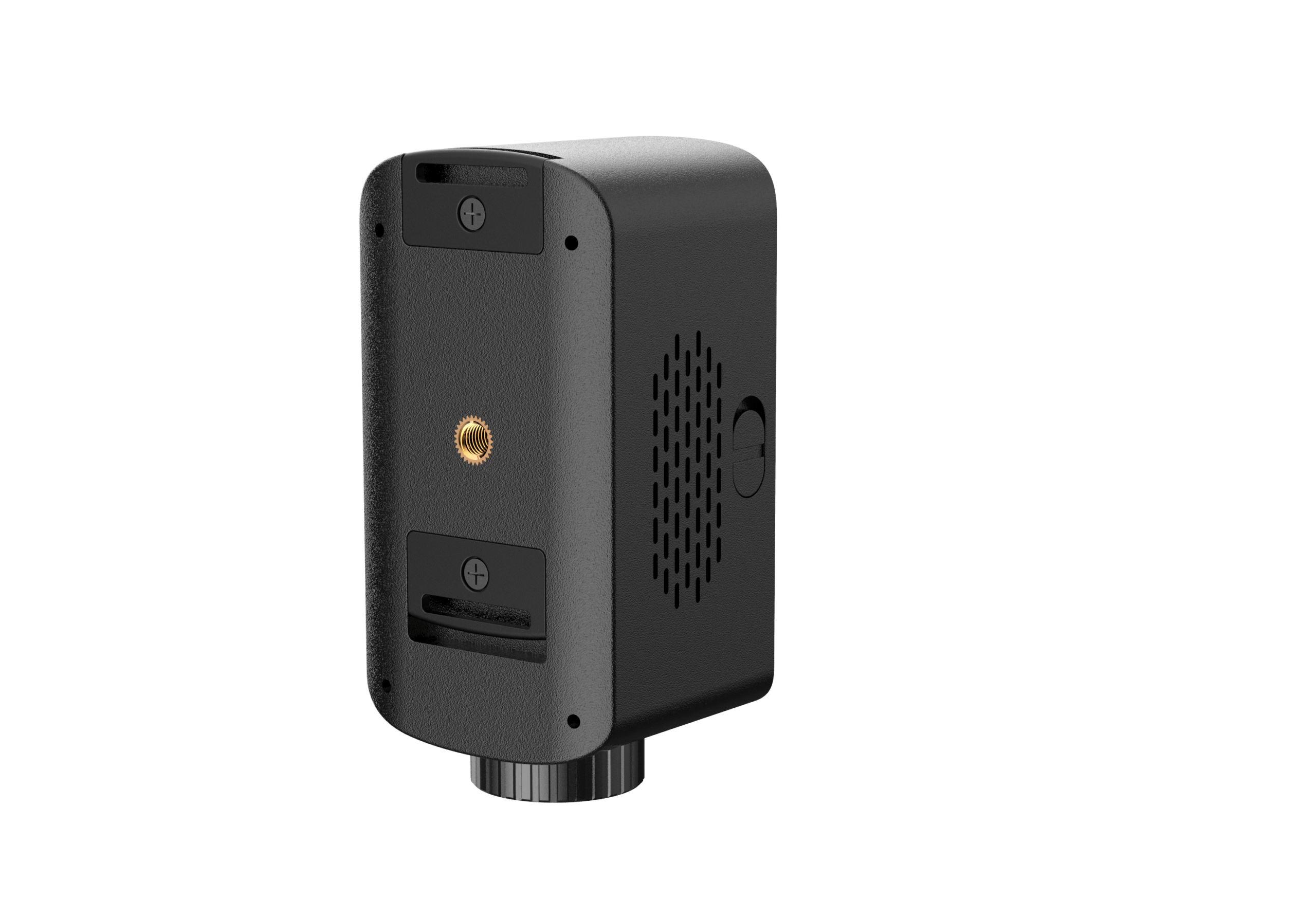

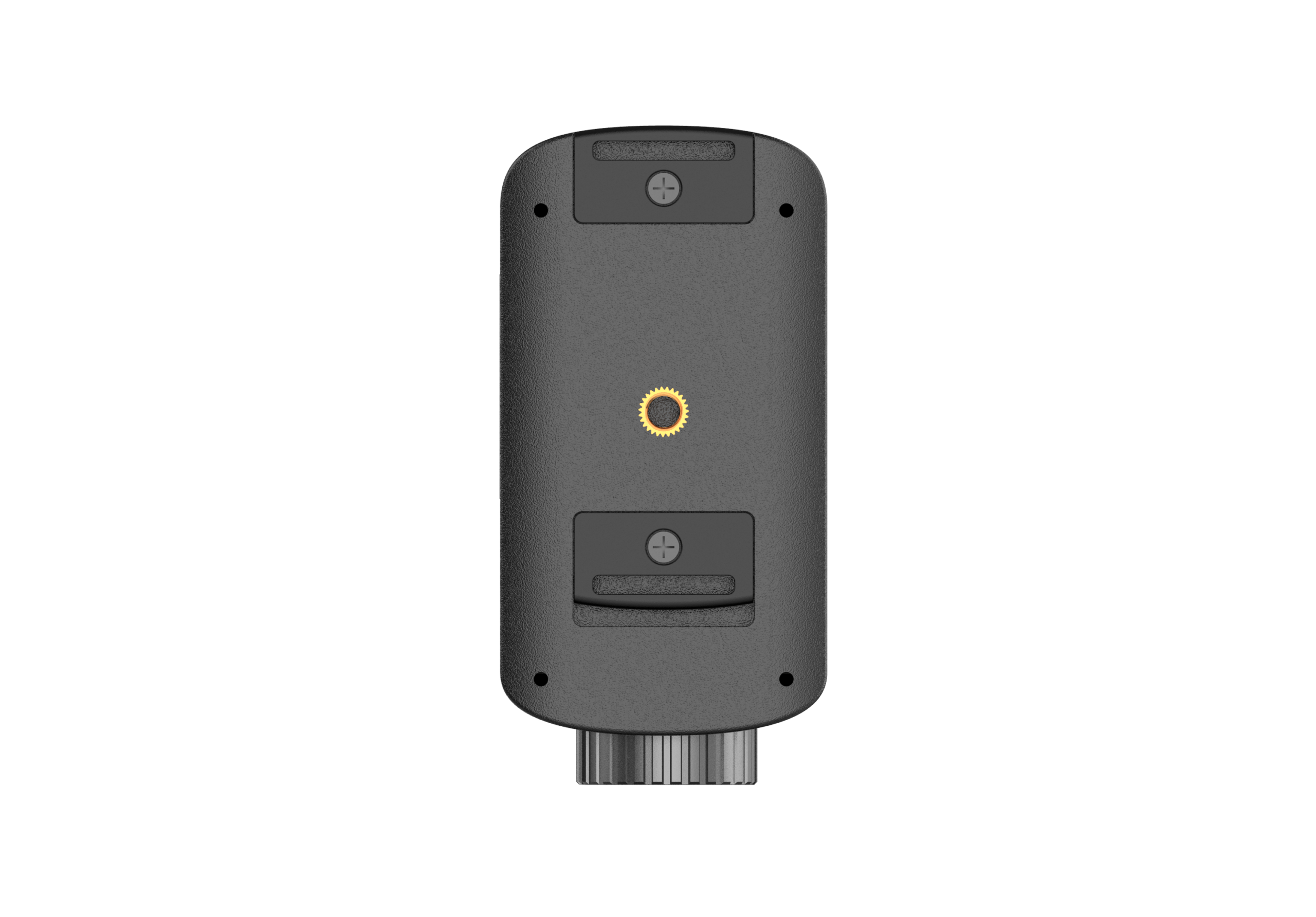

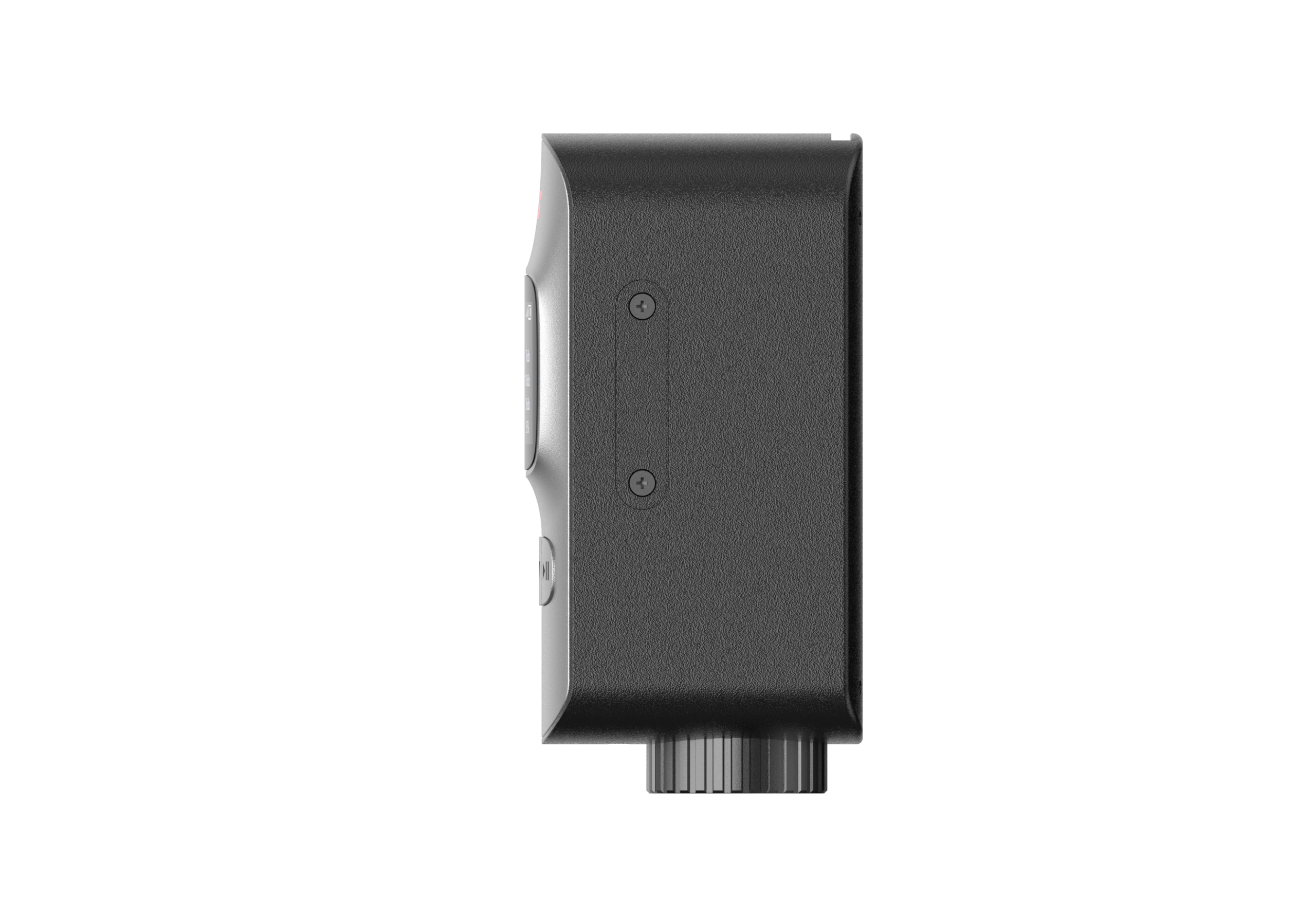

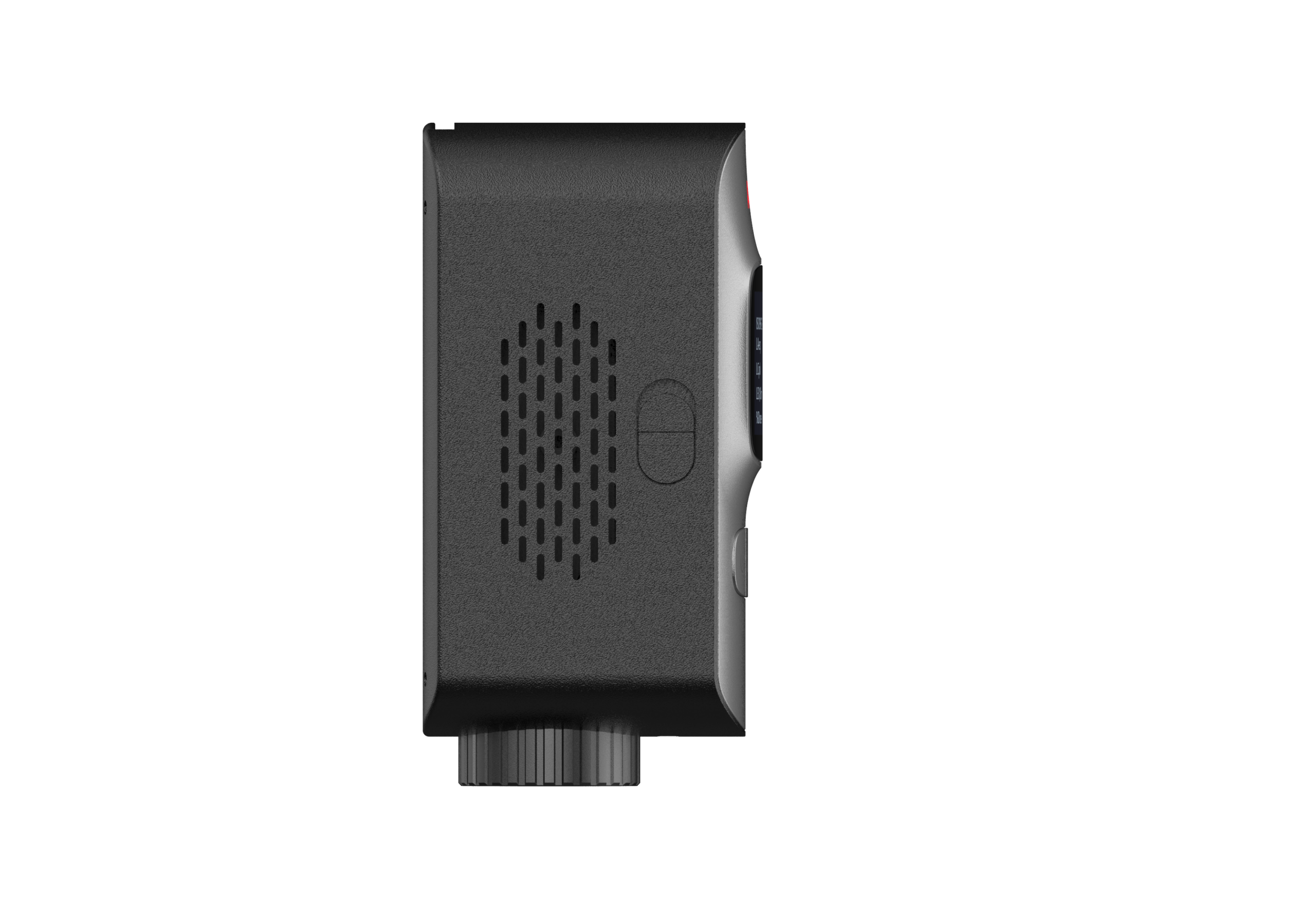

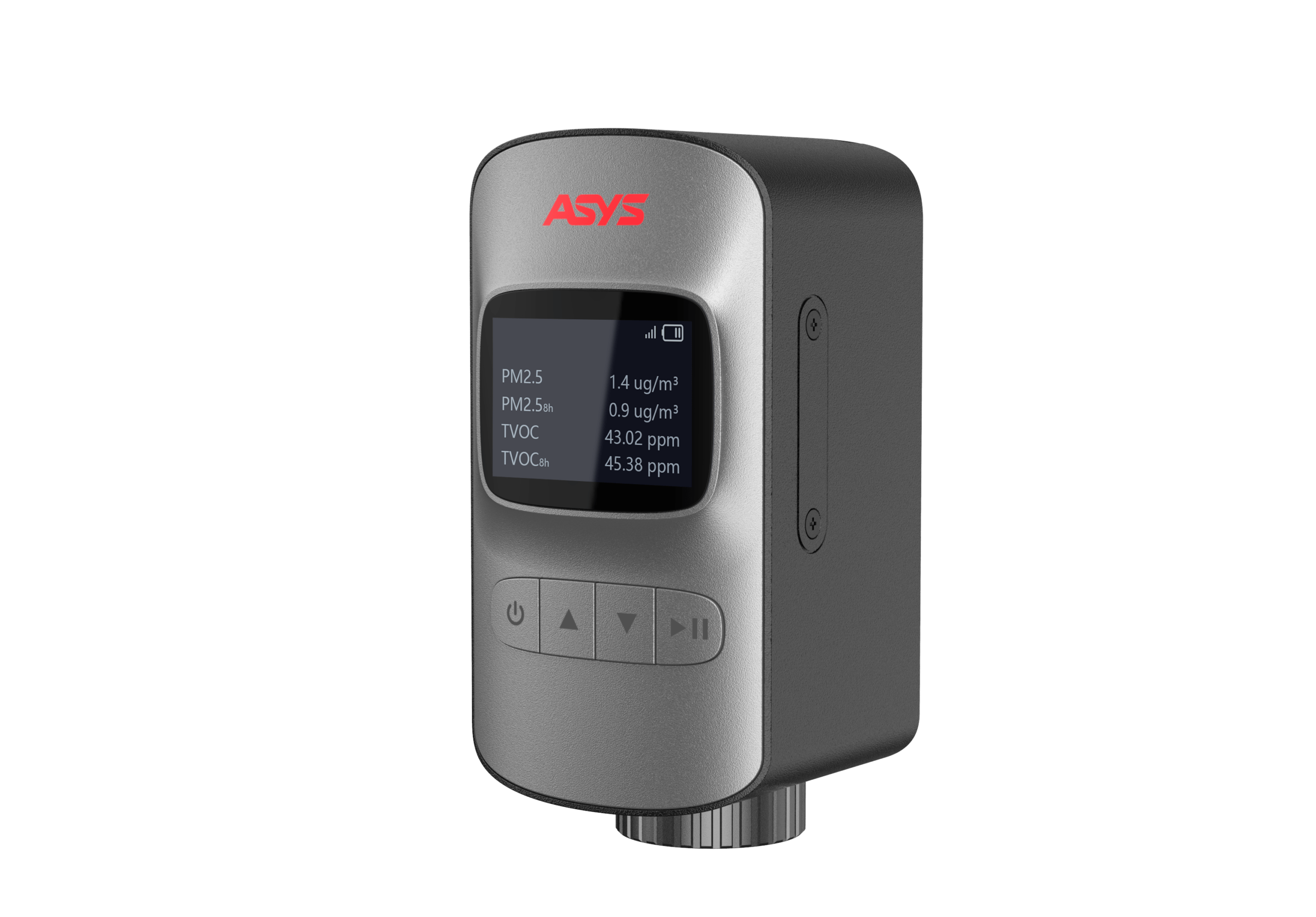

The ASYS dBELL 110 Personal Airborne Hazard Exposure Monitor provides real-time data on TVOC and Particulate levels (PM2.5, PM4.0, PM10) and calculates STEL and TWA values.



Armed with accurate exposure metrics, Health & Safety managers can take action where appropriate to ensure that personnel are fully protected from particulate and TVOC related health hazards.



A flexible tool for conducting occupational airborne hazard studies and assessing mitigation strategies, the ASYS dBELL 110 can be deployed as a personal exposure monitor, a handheld instrument or a remote monitor compatible with the ASYS dBELL 100 Area Monitoring System.



Available on backorder

somdn_product_page

Measurements

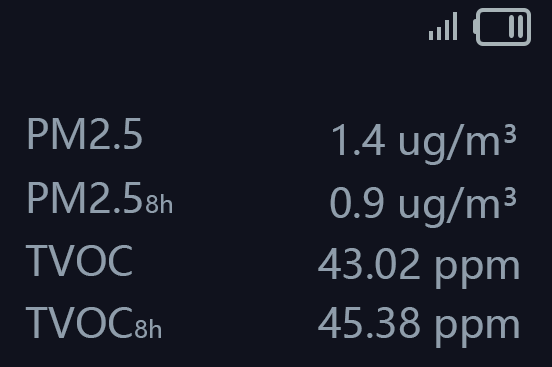

Displayed Air Quality Metrics



Particle Mass Concentration

  • PM 2.5
  • PM 2.5 TWA,8h
  • PM 2.5 Peak



Total Volatile Organic Compounds

  • TVOC,60s ppm
  • TVOC,15mins
  • TWA,8h

Specifications

Particle sensor

Sensitivity 0.3μm

Range 40μm

Flow Rate 5 LPM

Calibration NIST Traceable



TVOC sensor

Minimum detection limit 20ppb

Range >200ppm

Response time <8 sec

10.6 eV lamp

Lamp life 10,000 hours

Removable, pneumatically sealed sensing electrode stack



Physical

Case material ABS

IP Rating IP65

Display 28mm x 15mm

Dimensions (mm) 108 (h) x 50 (w) x 60 (d)

Weight 200g



Network connection

Wireless LoRaWAN® 433MHz

Encryption 128-bit AES



Environmental

Temperature Storage -20 to 60C

Operating-10 to 50C

Humidity 0 to 95% non-condensing
