Personal Four-Gas Monitor

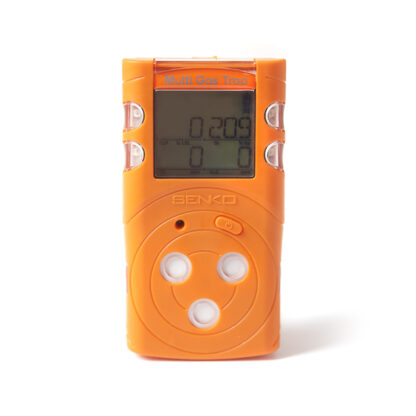

SENKO MGT P - Pellistor

£320.00 excl. tax | £384.00 incl. tax

The SENKO MGT small format personal multi gas monitor is the ideal solution for confined spaces to protect workers from dangers caused by Oxygen deficiency, Toxic gas poisoning, and gas explosion.  The monitors use patented design to ensure they are the most durable monitor available on the market for detecting Carbon Monoxide, Flammable gases, Hydrogen Sulphide and Oxygen depletion/enrichment.

The MGT clearly displays gas concentrations and raises an alarm (visual, vibrating, and audible) when the risk hazard occurs. The enclosures robust rubberised design will withstand the harshest environments.  Data can be easily downloaded to a PC using the IR link.

  • Hydrogen Sulphide, Oxygen, Carbon Monoxide, Flammable Gases
  • Tough, durable design for the harshest conditions
  • Clear ALARMS: Audible, Visual & Vibration

Choosing between Pellistor and Infrared:

MGT P – Pellistor

  • Broad Range flammable gas sensor
  • Detects Hydrogen
  • Linear response: Easy gas conversion
  • Needs an Oxygen environment

MGT N – Infrared

  • Suitable for inert environments
  • Does not detect hydrogen
  • Fail safe indication



somdn_product_page
SKU: NPL-MGTP00110 Categories: ,

Measurements

Measuring Range Low Alarm High Alarm STEL(15min) TWA
O2 0~30%Vol 19%Vol 23%Vol n/a n/a
CO 0~500ppm 30ppm 60ppm 200ppm 30ppm
H2S 0~100ppm 10ppm 20ppm 15ppm 10ppm
CH4 0~100%LEL 10%LEL 30%LEL n/a n/a

Applicable Standards

ATEX II 1 G Ex ia IIC T4 Ga(SP-MGT-N)
II 1 G Ex da ia IIC T4 Ga (SP-MGT-P)
IECEx Ex ia IIC T4 Ga (SP-MGT-N)
Ex da ia IIC T4 Ga (SP-MGT-P)
CSA&UL Ex ia IIC T4 Ga(SP-MGT-N)
Class I, Division 1, Groups A, B, C, and/or D, T4
Class I, Zone 0, AEx ia IIC T4 Ga
Ex da ia IIC T4 Ga(SP-MGT-P)
Class I, Division 1, Groups A, B, C, and/or D, T4
Class I, Zone 0, AEx da ia IIC T4 Ga
INMETRO Ex ia IIC T4 Ga (SP-MGT-N)
Ex da ia IIC T4 Ga (SP-MGT-P)
PESO Ex da ia IIC T4 Ga (MGT-P)
Ex ia IIC T4 Ga (MGT-N)
Other RoHs2, EMC, RCM(ACMA&RSM), REACH,
WEEE, FCC

Applications

  • Emergency workers
  • Sewage works
  • Tank cleaning
  • Petrochemical plants
  • Waste water treatment
  • Oil and Gas
  • Pipe purging verification

Specifications

Self-Test Full function self-test upon activation
Measuring Type Diffusion Type
Dimension 61 (W) x 114 (H) x 43 (D)mm
Weight 240g
Operating Temperature -20℃~+50℃
Operating Humidity 5%~95% RH (Non-condensing)
IP IP 67
Event Log Recent 30 alarms
Alarm Red Flashing LEDs (Light-Emitting Diode),
90dB audible alarm at a distance of 10cm, Vibration alarm
Display Liquid Crystal Display (LCD), Back-light
Battery Rechargeable Li-ion power supply unit (2,000mAh)
Battery Life IR : 60 days continuous / Pellistor : 25 hours continuous
Low Battery Alarm 20 minutes / 10 minutes / 5 minutes
Expired : 5 long beeps / flashes and then Off is displayed
Charging Time 4-6 hours
Warranty 2 years
Components Calibration Cap, Charge Cable and Adaptor



What's in the box

  • SENKO MGT gas detector
  • Calibration Cap
  • Charge Cable
  • Power Adaptor
