Advanced Spectrometer and Flicker Meter for Visual Health

UPRTEK MK350S Premium

£3,098.00 excl. tax | £3,717.60 incl. tax

The UPRtek MK350S Premium spectrometer simplifies the evaluation of lighting based on key factors essential for safety, productivity, and visual health. Designed as a comprehensive handheld spectrometer, it helps optimize workspace lighting in accordance with current standards. This advanced tool empowers occupational health professionals, lighting designers, and facility managers to create environments that enhance visual well-being, fostering healthier and more productive spaces.
Indoor electric lighting often includes artefacts which are absent in natural daylight. When assessing or designing lighting for a working environment, several attributes are critical for productivity, visual health, and circadian balance. Adequate brightness levels (measured in lux) prevent eye strain and improve focus whereas insufficient or excessive lighting can cause glare or strain leading to discomfort or fatigue. Poor colour rendering and visual acuity can adversely impact wellbeing. Flicker has been associated with eye strain, headaches, migraines, and even seizures.

  • Human Centric Light (HCL) Visual Health metrics per WELL Building Assessments
  • Flicker Assessments to IEEE PAR 1789-2015 safety regulations
  • Blue Light Hazard Assessments to IEC 62778 and IEC 62471
somdn_product_page
SKU: NPL-MK350SP Category:

Measurements

Illuminance Lux (lx), Foot Candle (fc)
Colour Temperature Correlated Color Temperature (K)
HCL metrics Melanopic Lux

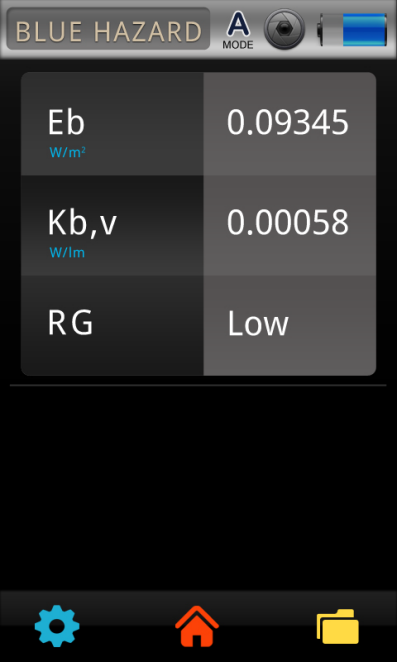

Blue Light Hazard (EB/KBv/RG)
Flicker Risk IEEE PAR 1789
Chromaticity Coordinates CIE 1931 x,y Coordinates
CIE 1976 u’,v’ Coordinates
CIE 1931 XYZ Value
△x,△y,△u’,△v’

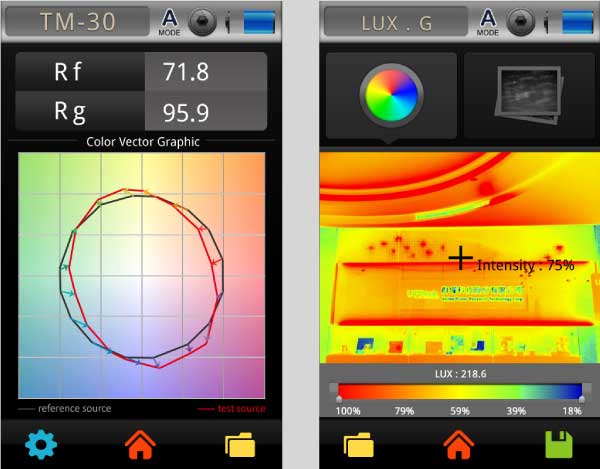

Colour Rendering metrics CRI, Ra, R1~R15, CQS, GAI, TLCI, TM30-18
Flicker metrics Flicker Frequency, Percent Flicker, Flicker Index, Flicker Risk IEEE PAR 1789
Other Duv, Excitation Purity, S/P ratio
Dominant wavelength
Transmittance

Applications

WELLTM V1, V2 assessment
Flicker Assessments to IEEE 1789
Blue Light Risk Group Classification (RG) as defined by IEC 62471
Human Centric Lighting and Visual Health (including Melanopic Lux)
Lighting Installation Design
Public Lighting Safety
Academics & Research
Luminaire Manufacturing

Specifications

Applicable Standards JIS C 1609-1:2006 for general Class A
DIN 5032 Part 7 Class B
Wavelength Range 380nm to 780nm
Wavelength Data Increment 1nm
Resolution Approximately 9nm (Half Bandwidth)
Reproducability +/- 1nm
Illuminance Range 1 to 150,000 lx
Illuminance Accuracy +/- 2.5%
Illuminance Repeatability (2σ) 0.2% in CIE 1931 x,y (100 to 150,000 lx),  0.5% in CIE 1931 x,y (5 to 100 lx)
Display 4.3″ 800 x 480 Resistive Touch LCD
Power Up to 4 hours after Fully Charged
Size 163 x 81 x 26.6 mm (H x W x D)
Weight 260g
Language English / Traditional Chinese / Simplified Chinese / Japanese / Spanish / German / French / Italian / Russian
Data Format Excel Data and Jpg Images (screen capture)
Communications connector Save and export data conveniently with SD card storage (up to 32GB) or through the Mini USB port (USB 2.0)
Calibration Factory Calibrated with a NIST traceable certificate
Warranty 3-Year Factory Warranty

What's in the Box

MK350S Premium Spectrometer
Protective Pouch and Carry Case
Li Battery & AC Power Adaptor
USB Cable
Carry Strap and Cover Strap
SD Card

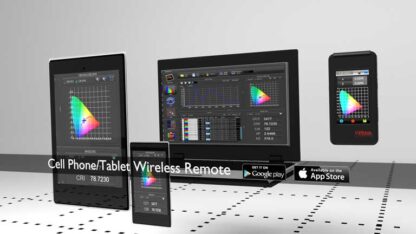

Wireless remote Control Card
Tripod/Stand Bracket
User Manual
Warranty Card
UPRtek Calibration Certificate
