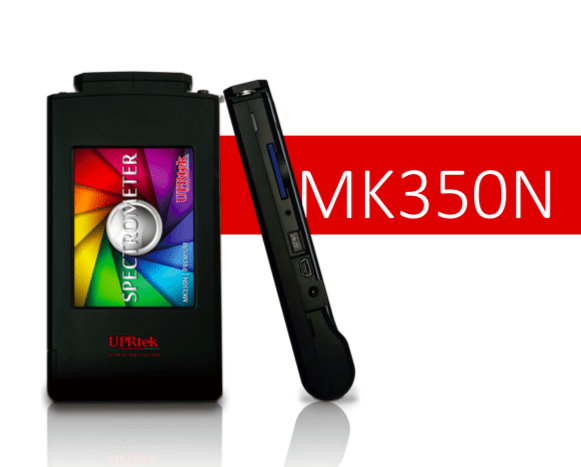

UPRTEK MK350N Premium

£2,071.00 excl. tax | £2,485.20 incl. tax

The UPRtek MK350N Handheld Spectrometer’s feature set is perfect for a wide range of users in LED commerce. Trusted by lighting professionals worldwide who require high-precision light measurements to analyse light quality to industry standard metrics.
Lightweight and compact, this spectrometer combines portability with a comprehensive set of light analysis functions tailored to the needs of lighting suppliers, manufacturers and design professionals to assess light quality. Measurement range and accuracy are best-in-class, certified and NIST traceable.
Designed for a wide range of projects and lighting challenges, this precision spectrometer is engineered to assess and optimise lighting environments in accordance with international design standards. It is commonly used by manufacturers and resellers to spot check light quality after arrival of shipments and post installation commissioning.
Academics enjoy office-classroom-lab portability, and researchers can take advantage of data collection and data transport connectivity and export capabilities.
Spectral Analysis
Illuminance Measurement
Colour Metrics
Advanced Flicker Measurement
Blue Light Hazard Assessment

  • Measures illuminance from 5 to 100,000 lux
  • Detailed colour information, including CIE 1931/1976 chromaticity coordinates, CCT, CRI and TM-30-18
  • Advanced Flicker Metrics and Blue Light Hazard Assessment
somdn_product_page
SKU: NPL-MK350NP Category:

Description

The UPRtek MK350N Handheld Spectrometer’s feature set is perfect for a wide range of users in LED commerce. Trusted by lighting professionals worldwide who require high-precision light measurements to analyse light quality to industry standard metrics.

Lightweight and compact, this spectrometer combines portability with a comprehensive set of light analysis functions tailored to the needs of lighting suppliers, manufacturers and design professionals to assess light quality. Measurement range and accuracy are best-in-class, certified and NIST traceable.
Designed for a wide range of projects and lighting challenges, this precision spectrometer is engineered to assess and optimise lighting environments in accordance with international design standards. It is commonly used by manufacturers and resellers to spot check light quality after arrival of shipments and post installation commissioning.
Academics enjoy office-classroom-lab portability, and researchers can take advantage of data collection and data transport connectivity and export capabilities.
Spectral Analysis
Illuminance Measurement
Colour Metrics
Advanced Flicker Measurement
Blue Light Hazard Assessment

  • Measures illuminance from 5 to 100,000 lux
  • Detailed colour information, including CIE 1931/1976 chromaticity coordinates, CCT, CRI and TM-30-18
  • Advanced Flicker Metrics and Blue Light Hazard Assessment

Measurements

Standard Light Metrics Lux (lx), Foot candle (fc)
Irradience (380nm – 780nm) Wm2
Spectral Power Distribution (SPD) mW/m2
Colour Temperature Correlated Color Temperature (K)  CCT
Spectrum
Peak Wavelength (λp)
Peak Wavelength Value (λpV)
Dominant Wavelength (λd)

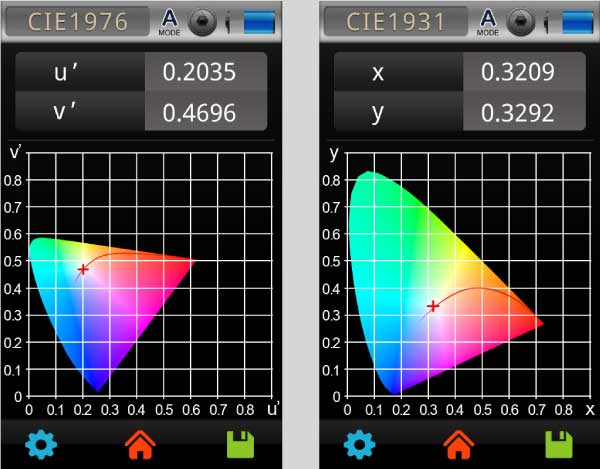

CIE Chromaticity Coordinates
CIE 1931 x,y Coordinates
CIE 1976 u’,v’ Coordinates
CIE 1931 XYZ Value
△x,△y,△u’,△v’
Delta UV (Duv)
Colour Rendering metrics
CRI, Ra, R1~R15
Colour Quality Scale (CQS)
TLCI
TM30-18 (Rf, Rg, Colour Vector Graphic)

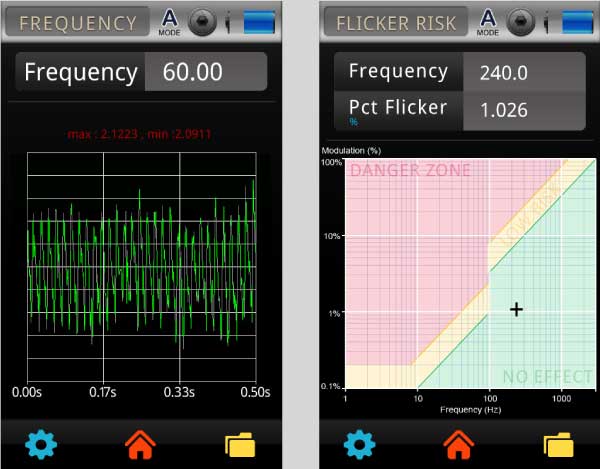

Flicker metrics Flicker Frequency, Percent Flicker, Flicker Index
Stroboscopic Effect Visibility measure (SVM)
Flicker Risk – IEEE PAR1789
Blue Light
Blue Light Irradiance (EB)
Blue Light Hazard Efficacy of Luminous Radiation (Kbv)
Blue Light Hazard Risk Group (Rg)
Blue Light Hazard Blue-ray
Other
Excitation Purity
Scotopic/Photopic (S/P) ratio
Transmittance

Applications

Lighting Consultants and Installation Design
Academics & Research
Public Lighting Safety
Flicker Assessments
Basic Blue Light Hazard

Specifications

Wavelength Range 380nm to 780nm
Wavelength Data Increment 1nm increments
Resolution (half bandwidth) 9nm
Wavelength Reproducability +/- 1nm
Illuminance Range 5 to 100,000 lx
Illuminance Accuracy +/- 2.5%
CCT Accuracy +/- 2%
CRI Accuracy +/- 1.5%
Illuminance Repeatability (2σ) 0.2% (100 to 100,000 lx),  0.5% (5 to 100 lx)
Display 3.5″ 320 x 240 Resistive Touch LCD
Language English / Spanish / German / French / Italian / Russian /Chinese (Traditional & Simplified) / Japanese
Power Up to 5 hours after Fully Charged
Size 147.5 x 78 x 24 mm (H x W x D)
Weight 255g with battery
Data Format Excel Data and jpg Images (screen capture)
Communications connector Save and export data conveniently with SD card storage (up to 32GB) or through the Mini USB port (USB 2.0)
WiFi SD Card compatible with iOS and Android
Maximum file storage 68,000 files @ 8Gb SD Card (excel and jpeg)
Environmental Operation: 0-35C, RH 70% (non-condensing).  Storage: -10-40C, RH 70% (non-condensing)
Calibration Factory Calibrated with a NIST traceable certificate
Warranty 3-Year Factory Warranty

What's in the box

MK350N Premium Spectrometer
Protection pouch (Belt mount)
Carry Case (Hard-shell with protective inserts)
Lithium Battery Pack
AC Power Adaptor
USB Cable
Spare appature cap and retaining strap
Carry Strap
Neck Strap
Screen Wiper

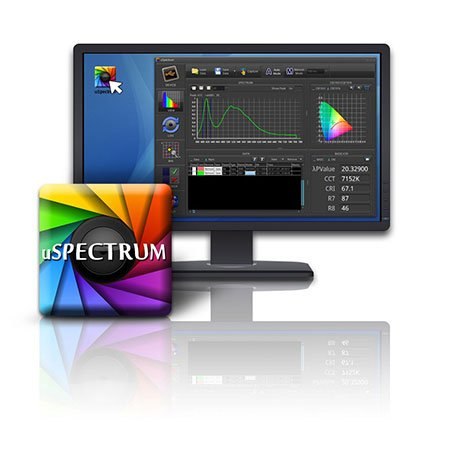

SD Card  (inc. uSpectrum & uFlicker Software)
Wireless remote Control Card
Tripod/Stand Bracket
User Manual
Warranty Card
UPRtek Calibration Certificate (Note – 1st Re-calibration within 3 years is free of charge. Excludes shipping)
