VibA8 Hand-Arm Vibration (HAVS) Meter

Castle VibA8

£3,486.50 excl. tax | £4,183.80 incl. tax

Monitoring hand-arm vibration safeguards employees and the health and safety reputation of your business, potentially avoiding costly legal outcomes.



The Castle VibA8 hand-held vibration meter is fully compliant with the Control of Vibration at Work Regulations 2005 and makes Hand and Arm Vibration Assessments simple and straightforward. Designed with the application and ease of use in mind the Castle VibA8 performs all the required calculations for you to make your HAVS exposure assessments accurately and efficiently.



Monitoring is crucial to prevent vibration induced health issues such as Hand-Arm Vibration Syndrome (HAVS), which causes vascular, neurological, and musculoskeletal damage. Minimising exposure ensures worker safety, compliance with regulations and maintains productivity by mitigating the risk of long-term disabilities and work-related injuries.



The instrument is supplied with a detachable tri-axial accelerometer for HAVS assessments with the flexibility of being able to add a Whole-Body Vibration (WBV) seat-pad sensor at any time. Featuring an intuitive interface with real-time measurements the VibA8 delivers the ultimate practical solution to quantifying the vibration levels of tools and equipment on your site.



  • Fully compliant with BS 8041:2017 and the Control of Vibration at Work Regulations 2005
  • Clear results in ms-2 together with Exposure Points and Maximum Exposure Allowed
  • Compatible with a Whole-Body Seat Pad (sold separately)
somdn_product_page
SKU: NPL-VK040 Categories: ,

Measurements

Parameters Acceleration: Arms, Aeq, Amax, Peak, Vector Sum, A(8) Dominant Axis, VDV, HSE Exposure Points, EAV and ELV
Frequency Weighting Band limited weightings (Whb, Wdb, Wkb) are available via the calibration menu if required.
Vibration Mode                 Weightings Available
Hand Arm                               Wh, Whb
Whole Body                          Wd, Wk, Wdb, Wkb
Level Ranges Level Ranges Note: Bottom of ranges are quoted as RMS and top of ranges as Peak levels
Linear Operating Range 80 dB
Measurement Channels Three: Simultaneous X, Y, Z
Time History User selectable with a minimum integrating period of one second.  Flash memory storing approx. 4,000 files or
Maximum potential recording size containing approximately 13500 intervals and without any other files stored.

Applications

Hand Arm Vibration Measurement
Compliance with Control of Vibration at Work Regulations 2005
Vibration assessment of hand-power tools: Grinders, Drills, Sanders, Saws etc,
Selection of optimal cutting discs, pads, blades, bits etc.

Specifications

Applicable Standards Instrument Standards:
BS EN ISO 8041-1:2017 Human response to vibrationFor Compliance with:ISO 5349:2001 Measurement and evaluation of human exposure to hand-transmitted vibration.
ISO 2631:2018 Mechanical vibration and shock – Evaluation of human exposure to whole-body vibration.
Transducers Standard HAV Sensor (KD1012)
Premium HAV Sensor (KD1006)
Standard WBV Seatpad (KD1013) & Cable
Premium WBV Seatpad (KD1014) & Cable
Display 2.4” Full Colour TFT LCD with 240 x 320 pixels
Refresh rate = 500mS
Power Requirement Batteries: 3.6V to 6.4V
Alkaline Type AA 1.5V recommended
Typical life >10 Hours continuous recording use with Auto Dim feature enabled
USB: 4.9V to 5.1V @ 500mA
Dimensions 185mm (H) x 70mm (W) x 30mm (D)
Weight Weight: 265g approximately (including batteries)
Languages English UK, English US, Chinese, French, German, Italian, Portuguese Brazilian, Russian, Spanish, Dutch and Greek.
Case High Impact ABS plastic with membrane keypad
Memory support Max number of files stored is approximately 4080 without any other file stored that uses Time History.
Connectors Input: 7 Pin Lemo Socket  Download: USB Micro B (Cable Supplied)
Environmental Temperature Operating Range -10 to + 50°C  Humidity: UP to 90% RH Non-Condensing

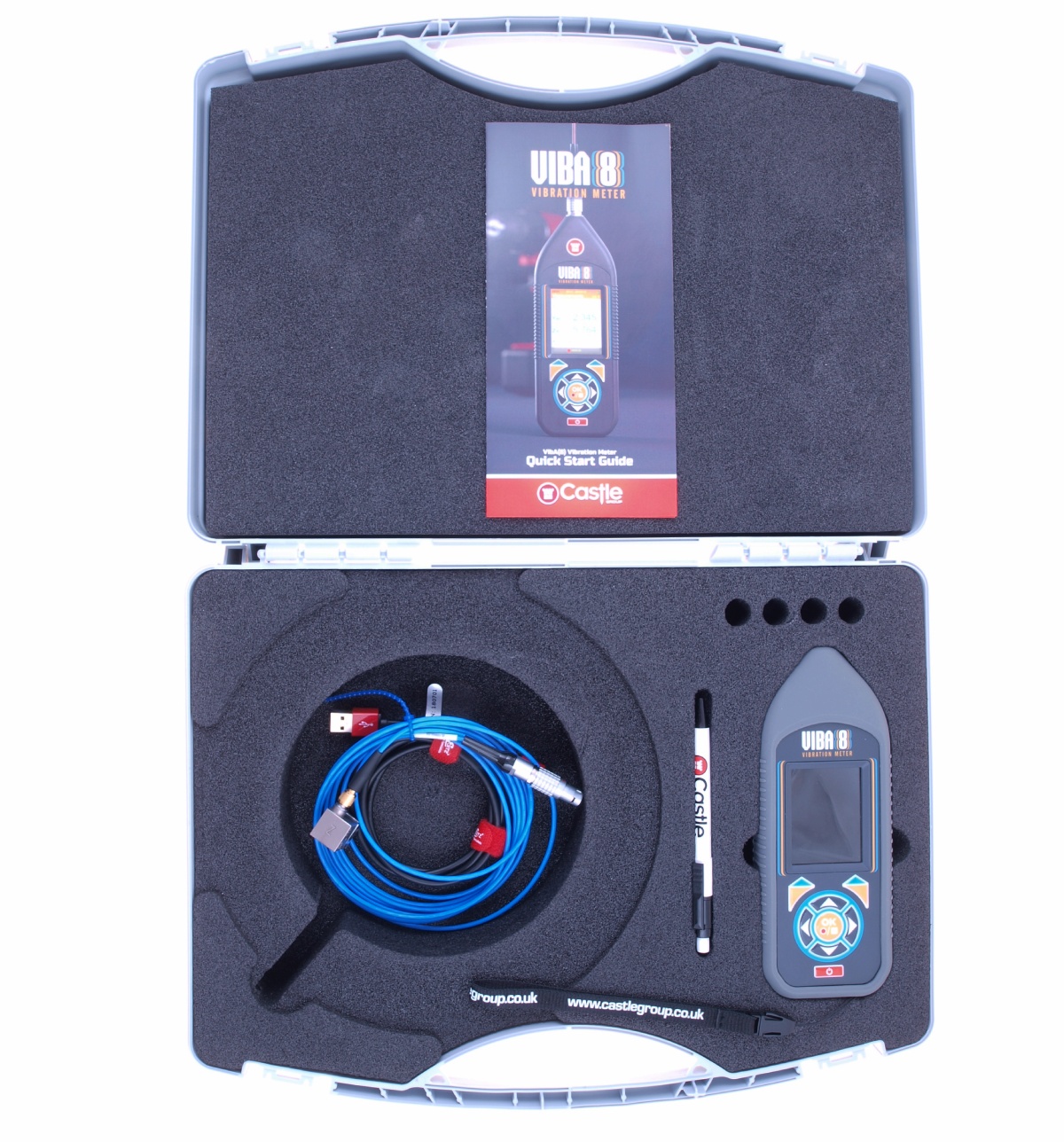

Whats in the box

Castle VibA8 Triaxial Vibration Meter (instrument only)
Grey Boot
System case for VibA8 (including space for Whole Body Accessory)
VibData LITE Software
Triaxial Accelerometer
Quick Start Guide
3 meter Tri-axial Accelerometer Cable
HARM Accelerometer Mounting Block
